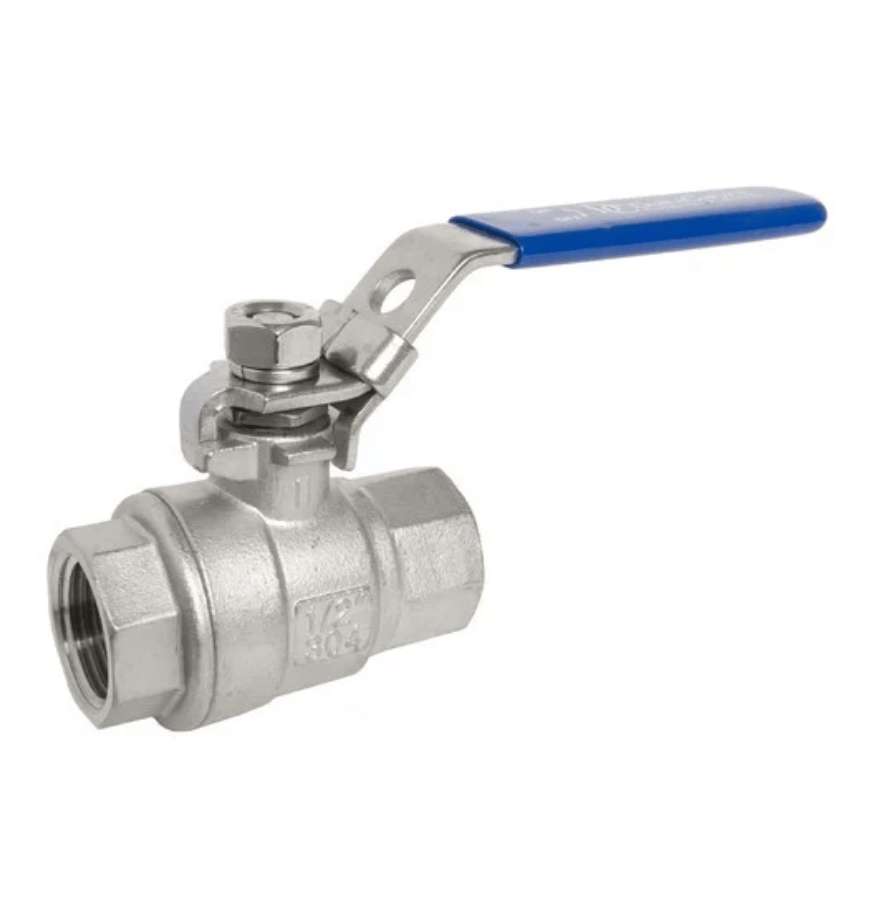

Ball Valves
Manufacturers in India
Product Specifications & Details
Quarter-Turn Operation
A simple 90-degree rotation allows quick opening and closing of the valve.
Reliable Shut-Off
Designed to provide dependable isolation in industrial fluid and gas systems.
Efficient Flow
Full-bore configurations can provide a relatively unrestricted flow path when open.
Material Options
Available in stainless steel, carbon steel, alloy steel and specialized alloy materials.
Multiple Designs
Floating, trunnion mounted, one-piece, two-piece and three-piece options are available.
Industrial Performance
Suitable for demanding process, pipeline and industrial flow-control applications.
Key Specifications
| Product | Industrial Ball Valves |
| Valve Types | Floating Ball, Trunnion Mounted, One-Piece, Two-Piece & Three-Piece |
| Operation | Quarter-Turn |
| Bore Options | Full Bore & Reduced Bore |
| Connection Types | Flanged, Threaded, Socket Weld & Butt Weld |
| Material Options | Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel & Nickel Alloys |
| Actuation Options | Manual, Pneumatic, Electric and application-specific operation |
| Applications | Oil & Gas, Petrochemical, Chemical Processing, Refineries, Power Generation and Industrial Piping |
Ball Valve Dimensions
| Valve Size | Outside Diameter (OD) | Center-to-End (CTE) |
|---|---|---|
| 1/4" | 0.54" (13.7 mm) | 1.89" (48 mm) |
| 3/8" | 0.68" (17.3 mm) | 2.17" (55 mm) |
| 1/2" | 0.84" (21.3 mm) | 2.76" (70 mm) |
| 3/4" | 1.05" (26.7 mm) | 3.27" (83 mm) |
| 1" | 1.32" (33.5 mm) | 3.94" (100 mm) |
| 1 1/4" | 1.65" (42 mm) | 4.53" (115 mm) |
| 2" | 2.37" (60.3 mm) | 5.91" (150 mm) |
| 2 1/2" | 2.95" (75 mm) | 7.09" (180 mm) |
| 3" | 3.48" (88.4 mm) | 7.87" (200 mm) |
| 4" | 4.53" (115 mm) | 9.84" (250 mm) |
Selecting the Right Ball Valve
Correct ball valve selection depends on the process medium, operating conditions, connection requirements and required method of operation.
Pressure & Temperature
Valve design and materials should be selected according to the operating pressure and temperature of the system.
Process Medium
Body, ball, seat and sealing materials should be compatible with the liquid or gas handled by the system.
Operation & Connection
Select the appropriate end connection and manual or automated operation according to installation and process requirements.
Custom orders: We offer Ball Valves in different designs, materials, sizes, bore configurations, end connections and actuation options according to project requirements. Contact our sales team for availability and a tailored quotation.
