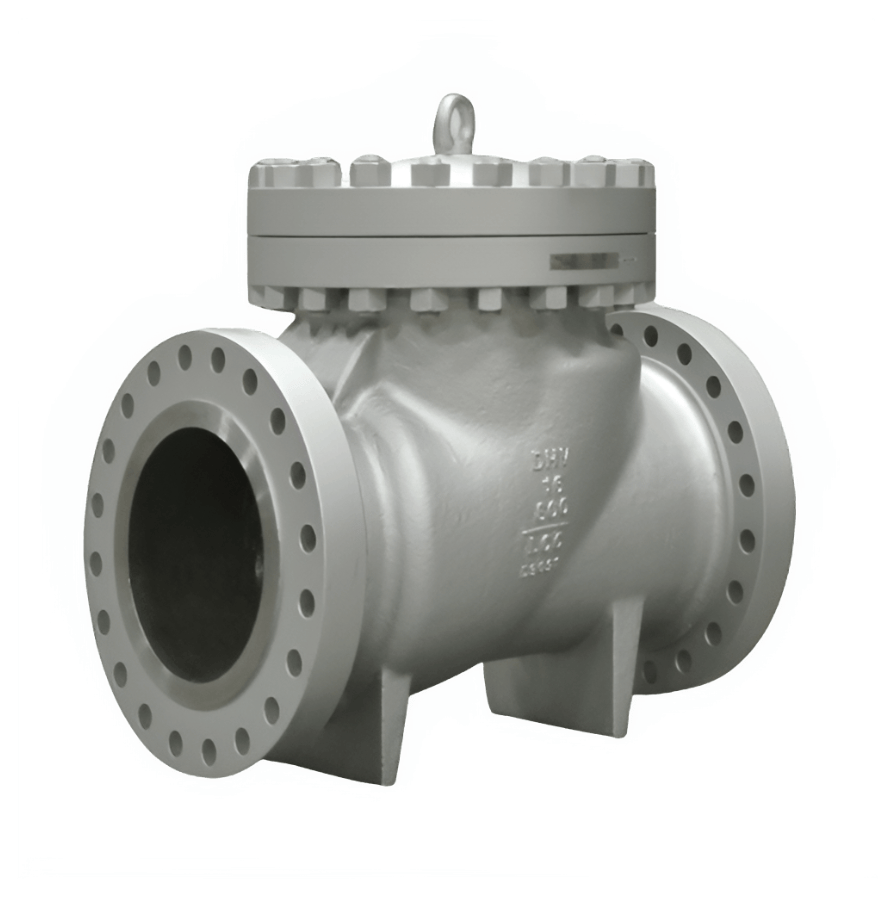

Check Valves
Manufacturers in India
Product Specifications & Details
One-Way Flow
Designed to permit process media to flow in the intended direction while restricting reverse flow.
Backflow Protection
Helps protect pipelines, pumps and process equipment from unwanted reverse flow.
Automatic Operation
Check valves operate automatically in response to fluid pressure and flow direction.
Material Options
Available in different body and trim materials for various process and service environments.
Multiple Designs
Swing, lift, wafer, dual plate and other configurations are available according to application requirements.
Industrial Service
Suitable for process piping, utilities, chemical plants, refineries and other industrial systems.
Key Specifications
| Product | Industrial Check Valves |
| Valve Types | Swing Check, Lift Check, Wafer Check, Dual Plate & Piston Check Valves |
| Function | One-Way Flow & Backflow Prevention |
| Operation | Automatic / Self-Actuated |
| Connection Types | Flanged, Threaded, Socket Weld, Butt Weld & Wafer |
| Material Options | Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel & Nickel Alloys |
| Applications | Oil & Gas, Petrochemical, Chemical Processing, Water Systems, Power Plants and Industrial Piping |
Check Valve Size Chart
| Valve Size (inches) | Inlet and Outlet Connection Diameter (inches) |
|---|---|
| 1/4 | 0.25 |
| 3/8 | 0.375 |
| 1/2 | 0.5 |
| 3/4 | 0.75 |
| 1 | 1 |
| 1 1/4 | 1.25 |
| 1 1/2 | 1.5 |
| 2 | 2 |
| 2 1/2 | 2.5 |
| 3 | 3 |
Selecting the Right Check Valve
Selecting the correct Check Valve depends on flow conditions, operating pressure, process medium, installation orientation and the required valve configuration.
Flow Conditions
Valve design should be selected according to flow rate, direction and system conditions to provide reliable one-way operation.
Pressure & Service
Pressure rating, temperature and process medium should be considered when selecting valve body, trim and sealing materials.
Valve Type & Installation
Swing, lift, wafer, dual plate or piston designs should be selected according to piping layout, installation orientation and project requirements.
Custom orders: We offer Check Valves in different designs, materials, sizes, pressure ratings and connection configurations according to project requirements. Contact our sales team for availability and a tailored quotation.
