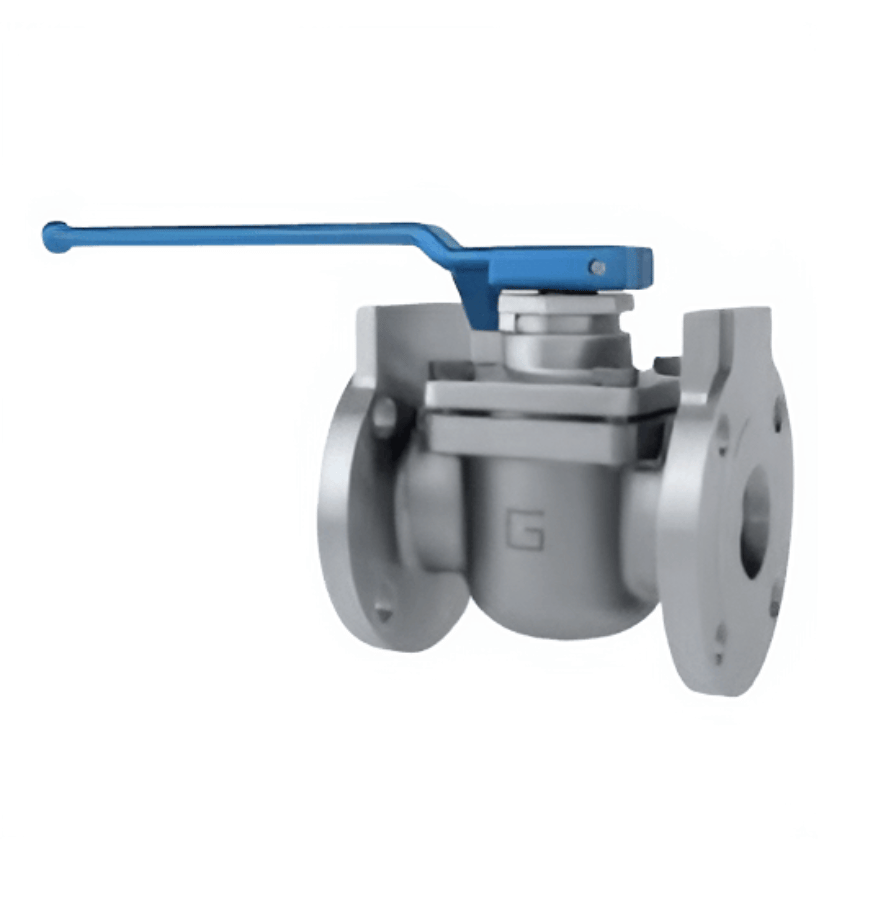

Plug Valves
Manufacturers in India
Product Specifications & Details
Quarter-Turn Operation
A simple 90-degree rotation provides quick opening and closing of the valve.
Reliable Isolation
Designed to provide dependable shut-off for industrial liquid and gas systems.
Efficient Flow Path
The internal plug passage provides an effective flow path when aligned with the pipeline.
Material Options
Available in various body and plug materials according to process and service conditions.
Multiple Designs
Lubricated, non-lubricated, sleeved and eccentric plug valve configurations are available.
Industrial Applications
Suitable for oil & gas, petrochemical, chemical processing and industrial piping systems.
Key Specifications
| Product | Industrial Plug Valves |
| Valve Types | Lubricated, Non-Lubricated, Sleeved, Eccentric & Flanged Plug Valves |
| Operation | Quarter-Turn Rotary Operation |
| Function | Isolation & Flow Control |
| Connection Types | Flanged, Threaded, Socket Weld & Butt Weld |
| Material Options | Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel & Nickel Alloys |
| Operation Options | Manual, Gear Operated & Actuated Configurations |
| Applications | Oil & Gas, Petrochemical, Chemical Processing, Refineries, Power Plants and Industrial Piping |
Plug Valve Size Chart
| Plug Valve Size (inches) | Nominal Diameter (mm) |
|---|---|
| 1/4 | 6 |
| 3/8 | 10 |
| 1/2 | 15 |
| 3/4 | 20 |
| 1 | 25 |
| 1 1/4 | 32 |
| 1 1/2 | 40 |
| 2 | 50 |
| 2 1/2 | 65 |
| 3 | 80 |
Selecting the Right Plug Valve
Selecting the correct Plug Valve depends on the process medium, operating conditions, valve design, material compatibility and connection requirements.
Pressure & Temperature
Valve body, plug and sealing materials should be selected according to the operating pressure and temperature of the piping system.
Process Medium
Material and sealing arrangements should be compatible with the liquid or gas being handled and the surrounding service environment.
Valve Design & Connection
Lubricated, non-lubricated, sleeved or eccentric designs and suitable end connections should be selected according to piping and project requirements.
Custom orders: We offer Plug Valves in different designs, materials, sizes, connection types and operating configurations according to project requirements. Contact our sales team for availability and a tailored quotation.
