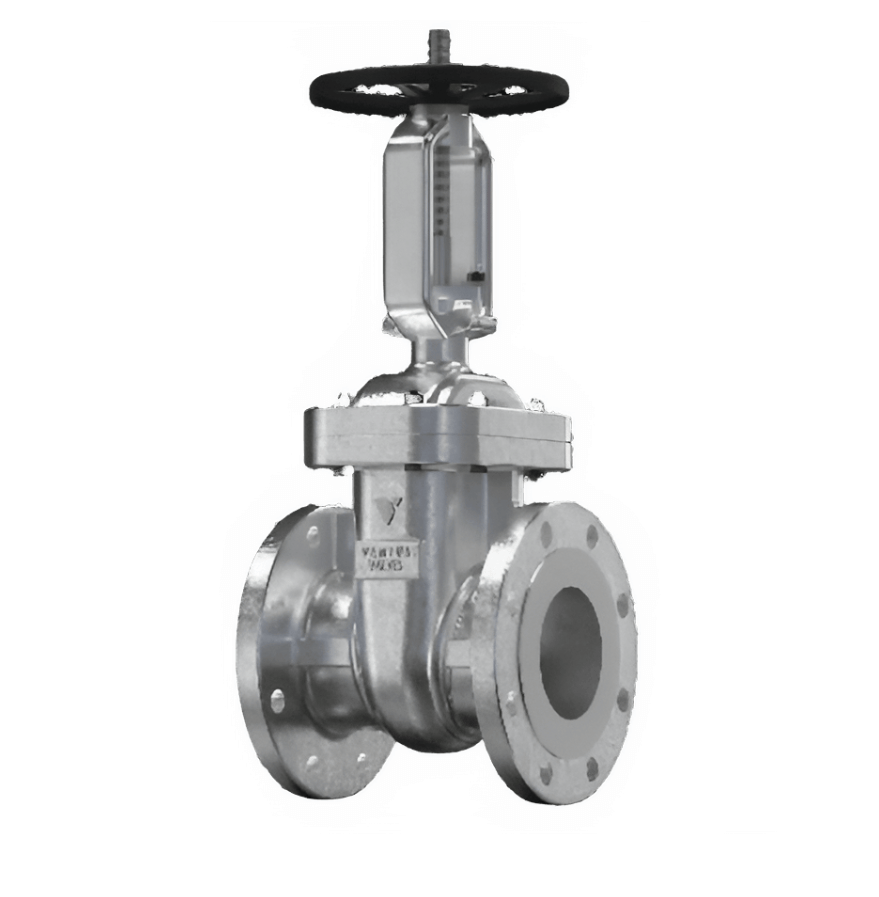

Gate Valves
Manufacturers in India
Product Specifications & Details
Reliable Isolation
Designed primarily for dependable on-off isolation in industrial piping and process systems.
Full Flow Path
When fully opened, the gate is positioned away from the primary pipeline flow path.
Gate Operation
Flow is controlled by vertical movement of a gate or wedge inside the valve body.
Material Options
Available in multiple body and trim materials for different industrial service environments.
Multiple Designs
Rising stem, non-rising stem, wedge and parallel slide configurations are available.
Industrial Applications
Suitable for oil & gas, chemical, petrochemical, power and process piping systems.
Key Specifications
| Product | Industrial Gate Valves |
| Valve Types | Rising Stem, Non-Rising Stem, Wedge Gate & Parallel Slide |
| Function | On-Off Isolation |
| Operation | Handwheel, Gear Operated & Actuated Options |
| Connection Types | Flanged, Threaded, Socket Weld & Butt Weld |
| Material Options | Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel & Nickel Alloys |
| Pressure Capability | Up to 6000 psi for the sizes shown in the size chart below |
| Applications | Oil & Gas, Petrochemical, Chemical Processing, Power Plants, Refineries and Industrial Piping |
Gate Valve Size & Pressure Chart
| Gate Valve Size (inches) | Nominal Diameter (mm) | Maximum Operating Pressure (psi) |
|---|---|---|
| 1/2 | 15 | 6000 |
| 3/4 | 20 | 6000 |
| 1 | 25 | 6000 |
| 1 1/4 | 32 | 6000 |
| 2 | 50 | 6000 |
| 2 1/2 | 65 | 6000 |
| 3 | 80 | 6000 |
| 4 | 100 | 6000 |
| 5 | 125 | 6000 |
| 6 | 150 | 6000 |
Selecting the Right Gate Valve
Selecting the correct Gate Valve depends on operating pressure, temperature, process medium, valve design, connection type and installation requirements.
Pressure & Temperature
Valve body, gate, trim and sealing materials should be selected according to the operating pressure and temperature of the piping system.
Process Medium
Material selection should consider the liquid or gas being handled, corrosion conditions and compatibility with the process environment.
Design & Connection
Rising stem, non-rising stem, wedge or parallel slide designs and suitable end connections should be selected according to piping and project requirements.
Custom orders: We offer Gate Valves in different designs, materials, sizes, pressure ratings, end connections and operating configurations according to project requirements. Contact our sales team for availability and a tailored quotation.
