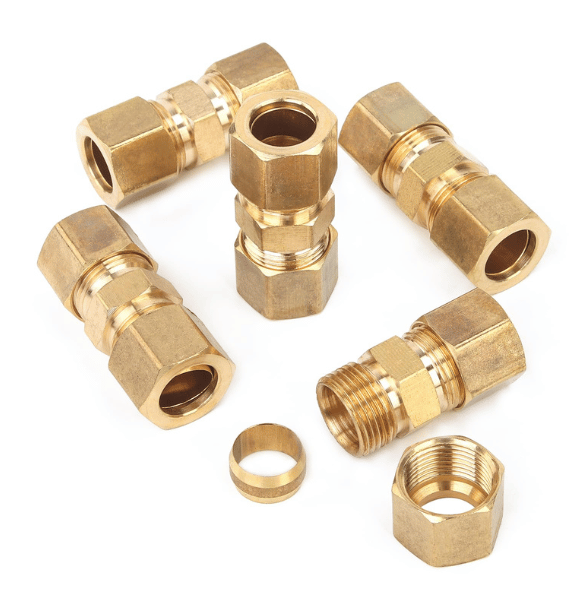

Compression Fittings
Manufacturers in India
Product Specifications & Details
Secure Connection
Designed to create a dependable mechanical connection between tubes and system components.
Leak Resistance
Precision components help provide reliable sealing for fluid and instrumentation systems.
Easy Installation
Mechanical assembly allows installation without the need for welding in many applications.
Multiple Configurations
Available as straight unions, elbows, tees, reducers, connectors and adapters.
Material Options
Available in stainless steel and other suitable materials for different service environments.
Precision Quality
Manufactured for dimensional consistency and dependable performance in industrial systems.
Key Specifications
| Product | Compression Fittings |
| Fitting Types | Union, Elbow, Tee, Connector, Reducer, Adapter & Bulkhead |
| Connection Type | Compression / Ferrule Connection |
| Design Options | Single Ferrule & Double Ferrule configurations |
| Material Options | Stainless Steel and other application-specific alloys |
| Tube Sizes | Multiple metric and imperial tube sizes available |
| Thread Options | NPT, BSP and other thread options depending on fitting configuration |
| Applications | Instrumentation, Process Control, Chemical Processing, Oil & Gas, Petrochemical and Industrial Systems |
Compression Fitting Types
| Fitting Type | Connection Function | Typical Use |
|---|---|---|
| Straight Union | Tube to Tube | Connecting two tubes in a straight line |
| Union Elbow | Tube to Tube | 90° directional tube connection |
| Union Tee | Tube to Tube | Three-way tube connection |
| Male Connector | Tube to Male Thread | Connecting tubing to threaded equipment |
| Female Connector | Tube to Female Thread | Tube connection to male-threaded components |
| Reducer | Different Tube Sizes | Connecting tubes of different diameters |
| Bulkhead Union | Panel Connection | Tube connection through panels or enclosures |
| Adapter | Tube / Thread Transition | Connecting different connection systems |
How Compression Fittings Work
Compression fittings create a mechanical seal by compressing the ferrule around the outside surface of the tube as the fitting is tightened.
Tube Insertion
The properly prepared tube is inserted into the fitting body until it reaches the required internal position.
Ferrule Compression
Tightening the fitting nut causes the ferrule system to grip and seal around the tube.
Secure Connection
The assembled fitting creates a strong mechanical connection suitable for the intended tube system.
Custom orders: We offer Compression Fittings in different configurations, tube sizes, thread types and material options according to project requirements. Contact our sales team for availability and a tailored quotation.
