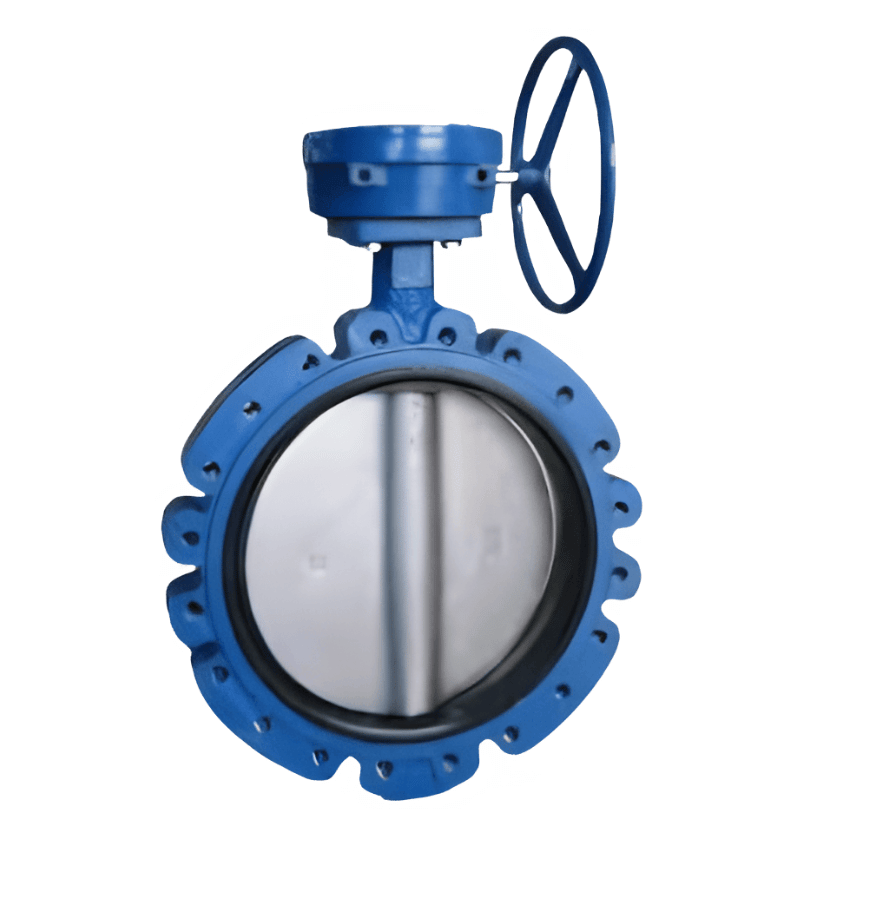

Butterfly Valves
Manufacturers in India
Product Specifications & Details
Quarter-Turn Operation
A 90-degree rotation provides quick opening, closing and regulation of pipeline flow.
Compact Construction
Butterfly valves provide a compact valve arrangement suitable for space-conscious piping systems.
Flow Regulation
Disc rotation allows the valve to be used for isolation as well as flow regulation.
Material Options
Body, disc and seat materials can be selected according to process and service requirements.
Actuation Options
Available with lever, gearbox, pneumatic and electric operating arrangements.
Industrial Applications
Suitable for water, process piping, chemical, power and general industrial systems.
Key Specifications
| Product | Industrial Butterfly Valves |
| Valve Types | Wafer, Lug, Flanged, Concentric & High-Performance Butterfly Valves |
| Operation | Quarter-Turn Rotary Operation |
| Body Materials | Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel & Alloy Materials |
| Disc Materials | Stainless Steel and other application-specific materials |
| Seat Options | EPDM, NBR, PTFE and other service-specific seat materials |
| End Connections | Wafer, Lug & Flanged |
| Actuation | Lever, Gear Operated, Pneumatic & Electric |
| Applications | Water Treatment, Chemical Processing, Oil & Gas, Power Plants, HVAC and Industrial Piping |
Butterfly Valve Dimensions
| Valve Size (inches) | Valve Size (mm) | Face-to-Face Dimension (mm) | Flange Size (mm) |
|---|---|---|---|
| 2 | 50 | 43 | 115 |
| 2.5 | 65 | 46 | 130 |
| 3 | 80 | 46 | 145 |
| 4 | 100 | 52 | 180 |
| 5 | 125 | 56 | 210 |
| 6 | 150 | 56 | 240 |
| 8 | 200 | 60 | 295 |
| 10 | 250 | 68 | 355 |
| 12 | 300 | 78 | 410 |
| 14 | 350 | 78 | 470 |
Selecting the Right Butterfly Valve
Selecting the correct Butterfly Valve requires consideration of operating pressure, temperature, process medium, valve construction and the required method of operation.
Pressure & Temperature
Valve body, disc, seat and sealing materials should be selected according to the operating pressure and temperature of the piping system.
Media Compatibility
Valve materials should be compatible with the liquid, gas or process medium handled by the system to ensure reliable service.
Actuation & Operation
Lever, gearbox, pneumatic or electric actuation can be selected according to valve size, operating frequency and automation requirements.
Custom orders: We offer Butterfly Valves in different sizes, materials, pressure ratings, body configurations, disc and seat combinations and actuation options according to project requirements. Contact our sales team for availability and a tailored quotation.
